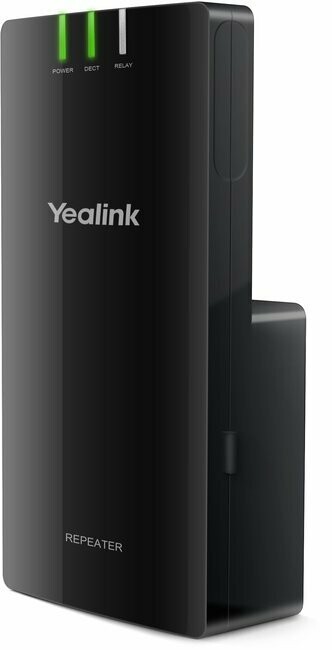

Yealink RT20U Repeater for W52P & W56P

DECT repeater for Yealink W52 and Yealink W56

The Yealink RT20 DECT repeater can be implemented when your Dect Yealink W52P / W56P telephone installation requires a coverage/range extension or to improve reception in remote areas.

Easy to install

It is characterized by wide compatibility, easy installation and a screen concept accessible to the user. The repeater, the base station, and the cordless telephone use a wireless connection. It can be deployed to extend the DECT radio coverage of the Yealink W52P / W56P base stations significantly in all directions. In addition, its slim design, easy installation plug-and-play, and HD voice are suitable for use in modern business environments and homes.

Features:

• Standards: DECT GAP
• Expansion of the DECT coverage
• Supports automatic transfer of calls between RT20
• Up to 2 simultaneous calls by phone
• Up to 5 repeaters per base station
• Automatic association
• Touch Switch for Base Link Reset
• LED display - LED 1 on - LED 2 DECT link - LED 3 Relay Active Frequency
• Coverage: Up to 50m. indoors and 300m Exterior.
• Modulation: GFSK
• Radio frequency range: 1880 MHz to 1900 MHz
• Transmission power: Average 10mW

Physical characteristics:

• Power supply: 100 - 240V AC, 50 / 60Hz
• Operating conditions: 0 ° C to + 45 ° C
• Dimension: 122 (W) 62 (H) 12 (D) mm
• Weight: 107 g
